xgboost::SparsePage Class Reference

In-memory storage unit of sparse batch, stored in CSR format. More...

#include <data.h>

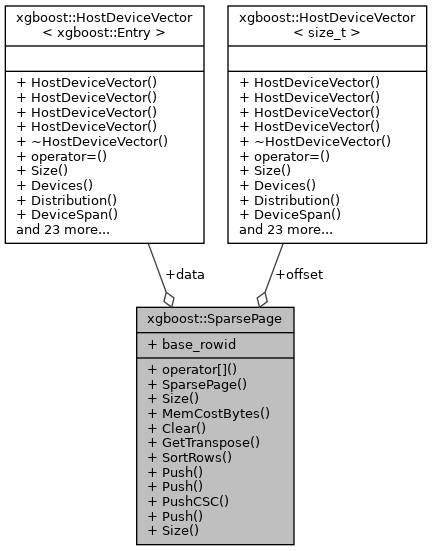

Collaboration diagram for xgboost::SparsePage:

Public Types
using	Inst = common::Span< Entry const >
	an instance of sparse vector in the batch More...

Public Member Functions
Inst	operator[] (size_t i) const
	get i-th row from the batch More...
	SparsePage ()
	constructor More...
size_t	Size () const
size_t	MemCostBytes () const
void	Clear ()
	clear the page More...
SparsePage	GetTranspose (int num_columns) const
void	SortRows ()
void	Push (const dmlc::RowBlock< uint32_t > &batch)
	Push row block into the page. More...
void	Push (const SparsePage &batch)
	Push a sparse page. More...
void	PushCSC (const SparsePage &batch)
	Push a SparsePage stored in CSC format. More...
void	Push (const Inst &inst)
	Push one instance into page. More...
size_t	Size ()

Public Attributes
HostDeviceVector< size_t >	offset
HostDeviceVector< Entry >	data
	the data of the segments More...
size_t	base_rowid

Detailed Description

In-memory storage unit of sparse batch, stored in CSR format.

Member Typedef Documentation

Inst

using xgboost::SparsePage::Inst = common::Span<Entry const>

an instance of sparse vector in the batch

Constructor & Destructor Documentation

SparsePage()

xgboost::SparsePage::SparsePage ( )

inline

constructor

Member Function Documentation

Clear()

void xgboost::SparsePage::Clear ( )

inline

clear the page

GetTranspose()

SparsePage xgboost::SparsePage::GetTranspose ( int  num_columns ) const

inline

MemCostBytes()

size_t xgboost::SparsePage::MemCostBytes ( ) const

inline

Returns

estimation of memory cost of this page

operator[]()

Inst xgboost::SparsePage::operator[] ( size_t  i ) const

inline

get i-th row from the batch

Push() [1/3]

void xgboost::SparsePage::Push

(

const dmlc::RowBlock< uint32_t > &

batch

)

Push row block into the page.

Parameters

batch

the row batch.

Push() [2/3]

void xgboost::SparsePage::Push

(

const SparsePage &

batch

)

Push a sparse page.

Parameters

batch

the row page

Push() [3/3]

void xgboost::SparsePage::Push ( const Inst &  inst )

inline

Push one instance into page.

Parameters

inst	an instance row

PushCSC()

void xgboost::SparsePage::PushCSC

(

const SparsePage &

batch

)

Push a SparsePage stored in CSC format.

Parameters

batch

The row batch to be pushed

Size() [1/2]

size_t xgboost::SparsePage::Size ( ) const

inline

Returns

number of instance in the page

Size() [2/2]

size_t xgboost::SparsePage::Size ( )

inline

SortRows()

void xgboost::SparsePage::SortRows ( )

inline

Member Data Documentation

base_rowid

size_t xgboost::SparsePage::base_rowid

data

HostDeviceVector<Entry> xgboost::SparsePage::data

the data of the segments

offset

HostDeviceVector<size_t> xgboost::SparsePage::offset

---

The documentation for this class was generated from the following file:

• /workspace/include/xgboost/data.h
