template for all quantile sketch algorithm that uses merge/prune scheme More...

#include <quantile.h>

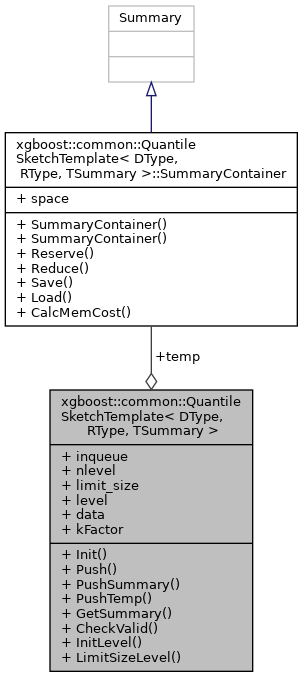

Collaboration diagram for xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >:

Classes
struct	SummaryContainer
	same as summary, but use STL to backup the space More...

Public Types
using	Summary = TSummary
	type of summary type More...

using	Entry = typename Summary::Entry
	the entry type More...

Public Member Functions
void	Init (size_t maxn, double eps)
	initialize the quantile sketch, given the performance specification More...

void	Push (DType x, RType w=1)
	add an element to a sketch More...

void	PushSummary (const Summary &summary)

void	PushTemp ()
	push up temp More...

void	GetSummary (SummaryContainer *out)
	get the summary after finalize More...

void	CheckValid (RType eps) const

void	InitLevel (size_t nlevel)

Static Public Member Functions
static void	LimitSizeLevel (size_t maxn, double eps, size_t out_nlevel, size_t out_limit_size)

Public Attributes
Summary::Queue	inqueue

size_t	nlevel

size_t	limit_size

std::vector< Summary >	level

std::vector< Entry >	data

SummaryContainer	temp

Static Public Attributes
static constexpr float	kFactor = 8.0

Detailed Description

template<typename DType, typename RType, class TSummary>
class xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >

template for all quantile sketch algorithm that uses merge/prune scheme

Template Parameters

DType	type of data content
RType	type of rank
TSummary	actual summary data structure it uses

Member Typedef Documentation

◆ Entry

template<typename DType , typename RType , class TSummary >

using xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::Entry = typename Summary::Entry

the entry type

◆ Summary

template<typename DType , typename RType , class TSummary >

using xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::Summary = TSummary

type of summary type

Member Function Documentation

◆ CheckValid()

template<typename DType , typename RType , class TSummary >

void xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::CheckValid ( RType eps ) const

inline

◆ GetSummary()

template<typename DType , typename RType , class TSummary >

void xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::GetSummary ( SummaryContainer * out )

inline

get the summary after finalize

◆ Init()

template<typename DType , typename RType , class TSummary >

void xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::Init	(	size_t	maxn,
		double	eps
	)

inline

initialize the quantile sketch, given the performance specification

Parameters

maxn	maximum number of data points can be feed into sketch
eps	accuracy level of summary

◆ InitLevel()

template<typename DType , typename RType , class TSummary >

void xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::InitLevel ( size_t nlevel )

inline

◆ LimitSizeLevel()

template<typename DType , typename RType , class TSummary >

static void xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::LimitSizeLevel	(	size_t	maxn,
		double	eps,
		size_t *	out_nlevel,
		size_t *	out_limit_size
	)

inlinestatic

◆ Push()

template<typename DType , typename RType , class TSummary >

void xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::Push	(	DType	x,
		RType	w = `1`
	)

inline

add an element to a sketch

Parameters

x	The element added to the sketch
w	The weight of the element.

◆ PushSummary()

template<typename DType , typename RType , class TSummary >

void xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::PushSummary ( const Summary & summary )

inline

◆ PushTemp()

template<typename DType , typename RType , class TSummary >

void xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::PushTemp ( )

inline

push up temp

Member Data Documentation

◆ data

template<typename DType , typename RType , class TSummary >

std::vector<Entry> xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::data

◆ inqueue

template<typename DType , typename RType , class TSummary >

Summary::Queue xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::inqueue

◆ kFactor

template<typename DType , typename RType , class TSummary >

constexpr float xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::kFactor = 8.0

staticconstexpr

◆ level

template<typename DType , typename RType , class TSummary >

std::vector<Summary> xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::level

◆ limit_size

template<typename DType , typename RType , class TSummary >

size_t xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::limit_size

◆ nlevel

template<typename DType , typename RType , class TSummary >

size_t xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::nlevel

◆ temp

template<typename DType , typename RType , class TSummary >

SummaryContainer xgboost::common::QuantileSketchTemplate< DType, RType, TSummary >::temp

The documentation for this class was generated from the following file:

/home/runner/work/xgboost/xgboost/src/common/quantile.h
